Hierarchically Regular Locomoting Robots (Genobots)

Here we evolve both the morphology and the controllers for different robots. The system for generating designs consists of the design builder and simulator, the L-system module and the evolutionary algorithm. The design builder takes a decoded build sequence and generates a robot and controller. Once built, the robot's movement is simulated for a fixed amount of time and evaluated for distance. This distance is the basis of a fitness function for the evoluationary algorithm to evolve the L-systems.

A constructed genobot:

gbot_m.avi (11.3M)

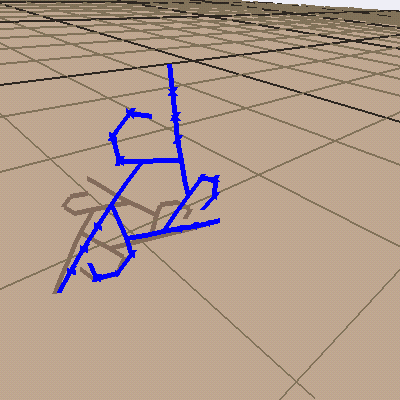

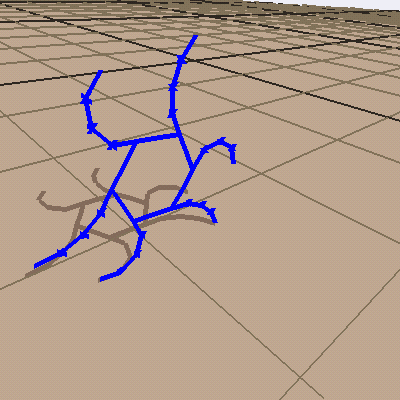

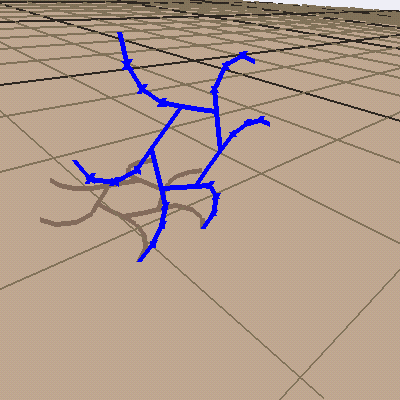

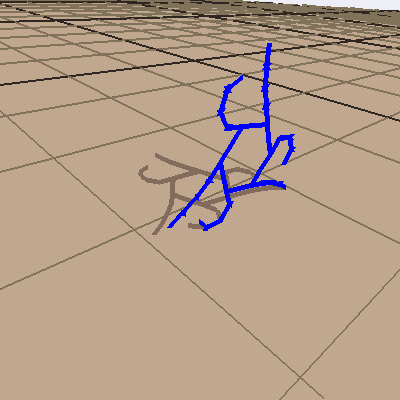

Below are locomotion sequences for two different creatures: a star creature with 43 bars and 24 actuated joints; and an inchworm with 49 bars and 7 actuated joints.

Step 1

Step 2

Step 3

Step 4

Step 1

Step 2

Step 3

Step 4


tbot_m.avi (11M)

In the following locomotion animations, green is drawn for bars ending in non-actuated joints and blue for bars ending in actuated joints.

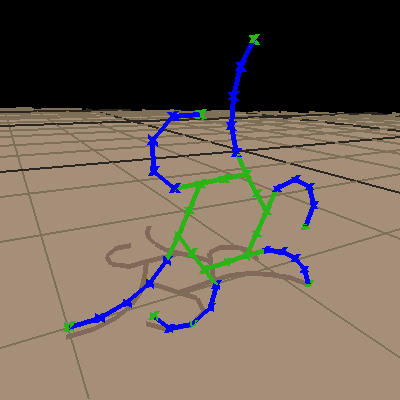

Sophia - Walking Star
43 bars, 24 actuated joints.

'Lil Rolly - Rolling Circle
20 bars, 8 actuated joints.

Roland - Rolling Triangle
67 bars, 28 actuated joints.

Inchworm #1
30 bars, 8 actuated joints.

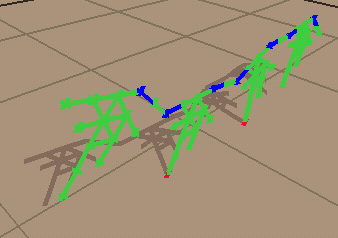

Inchworm #2
73 bars, 7 actuated joints.

Inchworm #3
23 bars, 10 actuated joints.

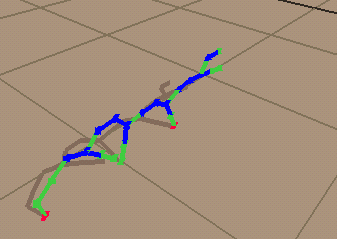

Inchworm #4
24 bars, 12 actuated joints.

25 bars, 7 actuated joints.

Walking M
13 bars, 6 actuated joints.

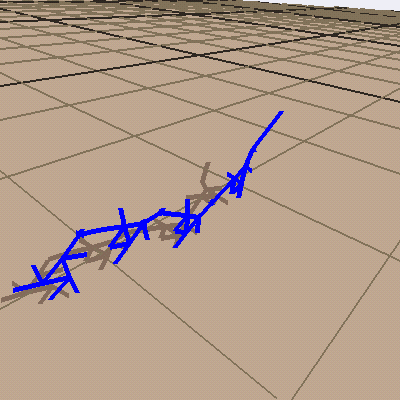

27 bars, 6 actuated joints.

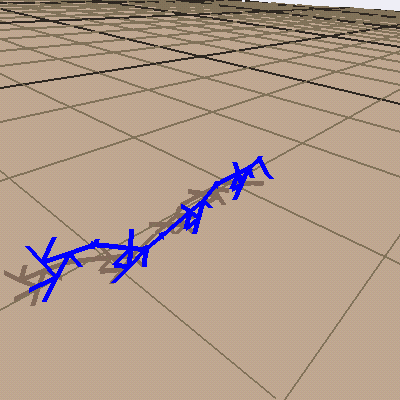

143 bars, 16 actuated joints.

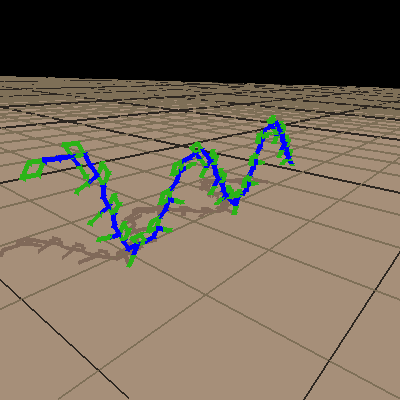

Giant Serpent
164 bars, 61 actuated joints.
